The Samsung Galaxy Tab Active Pro 5 is a rugged Android tablet designed for high-traffic, fast-paced environments like cafés and drive-thrus. It is part of joe Coffee’s recommended hardware lineup for both Single Screen Kit and Drive-Thru Customer Screen setups, offering durability, performance, and seamless tap-to-pay compatibility.
Key Specifications
| Feature | Details |
|---|---|
Operating System | Android 15 (supported through 2033) |
Display | 10.1" Full HD touchscreen |
Processor | Octa-Core |
RAM | 8 GB |
Storage | 128 GB (expandable via microSD) |
Connectivity | Wi-Fi 6/6E, 5G, Bluetooth, USB-C |
NFC Support | Yes – for tap-to-pay transactions |
Durability | MIL-STD-810H & IP68 rated (rugged, drop-resistant, water/dust-proof) |
Battery | Long-lasting and replaceable |
Primary Use Cases with Joe Coffee
- Single Screen Kit at the register
- Drive-Thru Customer Screen
- Fully compatible with tap-to-pay experiences
How to Power On the Device
- Press and hold the Power button (top or side of the tablet) for 2–3 seconds.
- Release when the Samsung logo appears.
Note: If the tablet doesn’t turn on, ensure it is charged or connected to a power source.
Enable NFC for Customer-Facing Screen
If you are setting up a Customer Mode device, follow these steps:
- Login to Your Account
- Sign in with your Email and Password.
- Select Point-of-Sale Customer Facing
- Choose Customer Mode to set up the customer-facing experience.
- Enter Device Name
- Enter a name for this screen (e.g. Customer Facing).
- Pair Device to Barista Screen
- Follow the prompts to connect it to your main Barista device.

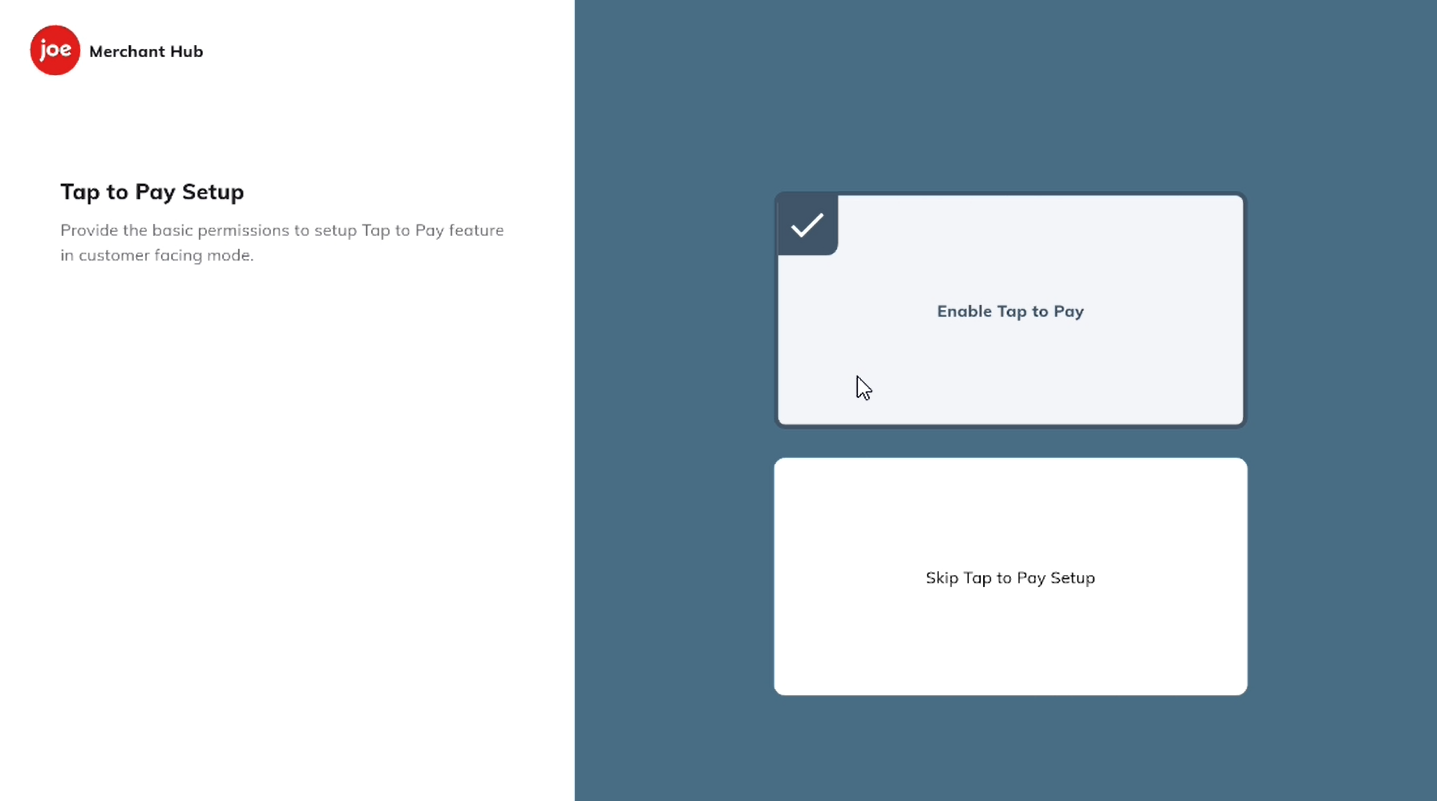

- Tap to Pay Setup
- Select the Enable Tap to Pay option.

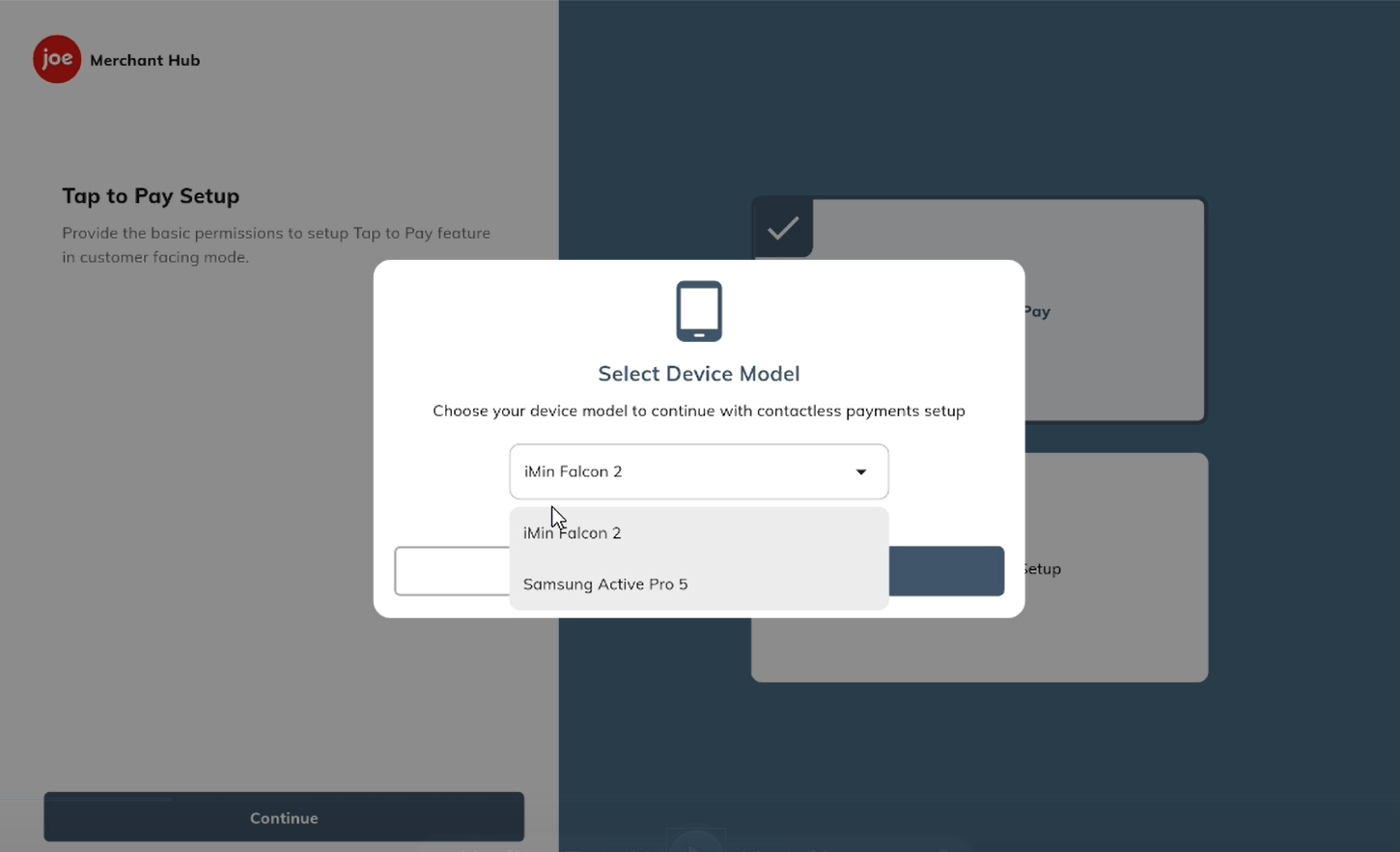

6. Make sure to select what device is used to pair. You have two options:
- iMin Falcon 2
- Samsung Active Pro 5
Note: The tablet’s NFC setting is enabled by default, but if you encounter any issues, you can enable it by swiping down to open Quick Settings and tapping the NFC icon.
If it’s not visible, go to Settings > Connections > NFC and Contactless Payments, then toggle it ON.
Enable NFC During Onboarding for One Screen Solution
- Login to Your Account
- Sign in using your Email and Password.
- (Note: Soon you’ll be able to log in using your cell phone number.)
- Select Barista Mode
- Tap Barista Mode to configure your device.
- Enter Device Name
- Assign a name to this register (e.g., Front Counter POS).
- Enable One Screen Mode
- Go to Settings > Features.
- Toggle One Screen Mode ON.
Result: Your device is now ready to accept Tap to Pay as the primary payment method, allowing you to take contactless payments directly on your Falcon 2 without additional hardware.
Card Reader Setup (For Non-Tap Cards)
If a customer’s card doesn’t support NFC:
- Open the Joe App
- Go to Settings
- Disable Contactless Payment
- Under Card Readers, select Bluetooth or USB
- Connect and pair.
Hardware Overview
| Model | Purpose | Description |
Samsung Active Pro 5 | Single Screen Kit Device | Features NFC, Wi-Fi 6/6E, 5G connectivity, rugged design, Android 15, 8GB RAM, 128GB storage. Includes software updates supported until 2033. |
Samsung Heavy Duty Case | Protective Case | Provides drop protection for the Samsung Active Pro 5 device. |
Card Reader | Payment Device | Used for card payments. Setup instructions below. |
Falcon 2 (Wi-Fi/LTE) | Walk-Up Register Device | Equipped with Wi-Fi 6, NFC, wireless charging mount, and 4G LTE connectivity to support tap-to-pay smoothly. |
Falcon 2 Dock | Tablet Docking/Mount | Provides secure mounting and wireless charging for the Falcon 2 tablet. |
Other Key Features of the Samsung Active Pro 5
- Glove & Wet Touch Support - The screen is optimized to function while wearing gloves or when wet—ideal for kitchen and outdoor environments.
- Programmable Physical Key - A side button can be configured to open specific apps like joe or trigger other frequent actions.
- POGO Pin Support - Allows for secure docking and fast charging with compatible mounts.
Enterprise-Grade Security - Samsung Knox provides built-in protection for customer and transaction data.
Your Samsung Galaxy Tab Active Pro 5 is now fully set up and ready for tap-to-pay transactions. If you need help or run into any issues, please reach out to our support team at support@joe.coffee
