This section explains the names and functions of parts that are related to the basic operations of the main unit.
- Front of main unit
- Back of main unit
- Inside of main unit
- Bottom of main unit

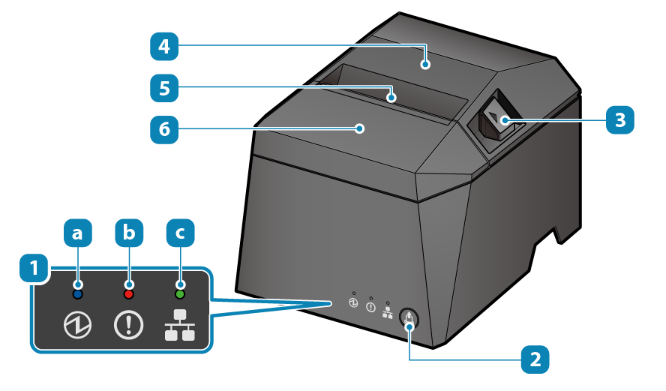

Front of main unit
- LED: Indicates the printer status.
- Power LED (Blue)
- Error LED (Red)
- Network LED (Green)
- FEED button: Press this button to feed paper. Also, use this button to perform Self-Printing
- Opening lever: Push this lever to open the printer cover when setting the paper roll.
- Printer cover: Opens/Closes when setting the paper roll.
- Paper exit: The printed paper is ejected from here.
- Front cover: Remove the cover in order to clear a cutter error.

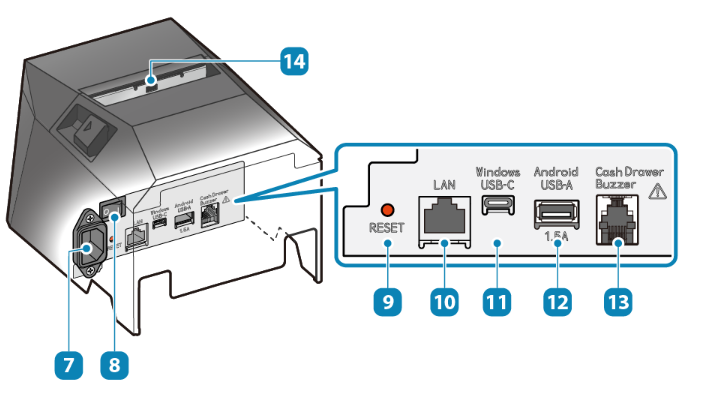

Back of main unit
- Power socket: Connect the power cable that comes with the main unit.
- Power switch: Turns the power on/off.
- Reset switch: Initializes the main unit network settings. The manual linked below describes the procedure by using a printer cover that is easier to operate.
- LAN port: Connects the LAN cable that comes with the main unit.
- USB-C port: Connects a Windows device via the USB cable that comes with the main unit.
- USB A cable: Connects an Android device via the USB cable that comes with the main unit. Also connects to and communicates with USB-connectable products* specified by Star Micronics. In addition, it can provide power to tablets and other USB devices.
* There are restrictions if you use USB-connectable products or USB HID class (keyboard mode).
- Connector to drive external device: Connects cash drawer
14. Hold print sensor: Detects whether the printed label is removed from the paper exit of the printer.

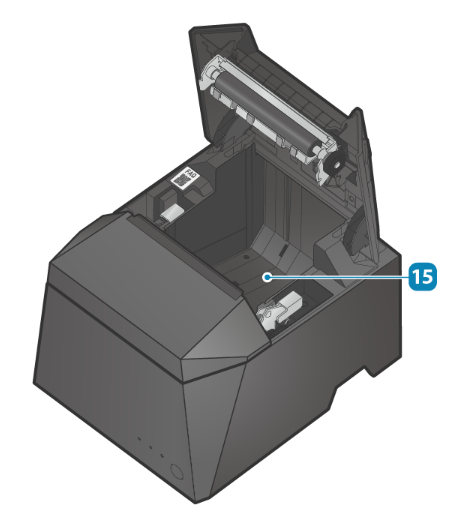

Inside of main unit
- Paper roll holder: Sets the paper roll

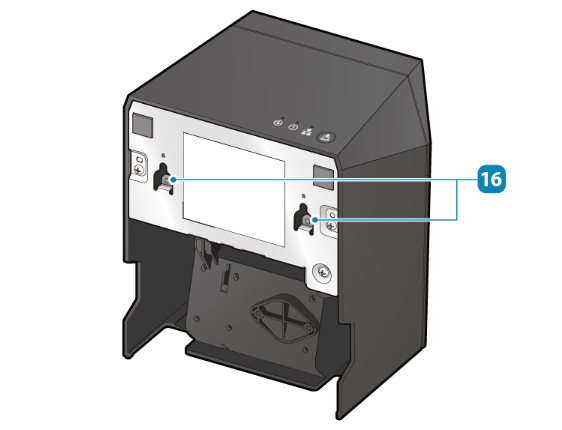

Underside of main unit
- Wall-mounting holes: These are used when mounting the printer on the wall
Use USB Device
Pay attention to the following points when connecting and using the USB-connectable products or USB HID class (keyboard mode) device with the TSP100IV SK.
- Only one device of either our designated barcode reader or USB HID class (keyboard mode) can be connected
- The device can be connected by USB to the TSP100IV SK and used only if the application (or system) which is used supports the above USB devices. For the support status, check with the application (or system) provider. These devices cannot be used with general-purpose applications (such as Excel or Notepad).
Please direct any inquiries regarding support for USB HID class devices to here. If you have any questions about your printer, feel free to reach out to the joe support team at support@joe.coffee.
